Product Details

Commercial Grade Truck Equipment

S3780 Product Specs

Length: 0 "
Overall Length: 0 "
Height: 0 "
Overall Height: 0 "
Mount Height: 0 "
Overall Height Folded: 0 "
Depth: 0 "
Overall Depth: 0 "
Weight: 0 lbs.
Width: 0 "
Overall Width: 0 "
Number of Doors: 0
Top Tray Height: 0 "
Standard Tray: 0
Application: 0
Wheels: Single
Hoist: 0
Rotation: 0
Rotation Break: 0
Boom Elevation: 0
Boom Exention: 0
Retracted Length: 0
Extended Length: 0
Load Radius: 0
Lift Capacity: 0
Elevation Travel: 0
Material: Steel
Number of Lids: 0

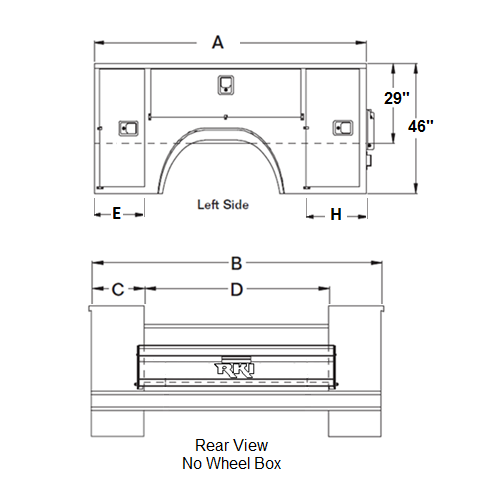

A: 74 1/2 "
B: 80 "
C: 14 1/2 "
D: 51 "
E: 15 "
F: 0 "
G: 0 "
H: 18 "
I: 0 "
Approximate Weight: 1078 lbs.
Aproximate Shipping Weight: 0
Ratio: 0
Gear Cut: 0
Drum: 0
Shaft: 0
Assembly: 0

S3780 Product Images

Click for larger image

No images are available at this time.

S3780 Product Details

Specifically designed to fit RAM 37" CA trucks (6'4" box delete)

  • 14 gauge galvanneal steel construction
  • Double panel doors with 14 gauge galvanneal outer panel and 18 gauge galvanneal inner panel
  • 12 gauge tread plate floor
  • 3/16" A50 high strength steel formed crossmembers at front and rear of body
  • 10 gauge high strength steel formed intermediate crossmembers.
  • 3 full length 14 gauge formed “hat” channel longitudinals for full length floor support
  • Stainless steel integral rod door hinge pins
  • Stainless steel pillow blocks with self-lubricating bushings
  • Stainless steel paddle latches
  • Body fully undercoated
  • Lifetime warranty
  • No wheel boxes
  • No offsets in rear compartment
  • 1" offsets in front compartments
