Product Details
Commercial Grade Truck Equipment
Products Start
>
Crane
>
2000 Series
2000-3-5S Product Specs
Length:
0 "
Overall Length:
0 "
Height:
0 "
Overall Height:
30 "
Mount Height:
0 "
Overall Height Folded:
0 "
Depth:
0 "
Overall Depth:
0 "
Weight:
0 lbs.
Width:
0 "
Overall Width:
15 "
Number of Doors:
0
Top Tray Height:
0 "
Standard Tray:
0
Application:
0
Wheels:
Hoist:
Power
Rotation:
Manual
Rotation Break:
Mechanical
Boom Elevation:
Manual w/assist
Boom Exention:
Manual
Retracted Length:
56 "
Extended Length:
80 "
Load Radius:
0
Lift Capacity:
0
Elevation Travel:
0
Material:
Not Specified
Number of Lids:
0
A:
0 "
B:
0 "
C:
0 "
D:
0 "
E:
0 "
F:
0 "
G:
0 "
H:
0 "
I:
0 "
Approximate Weight:
247 lbs.
Aproximate Shipping Weight:
279 lbs.
Ratio:
0
Gear Cut:
0
Drum:
0
Shaft:
0
Assembly:
0

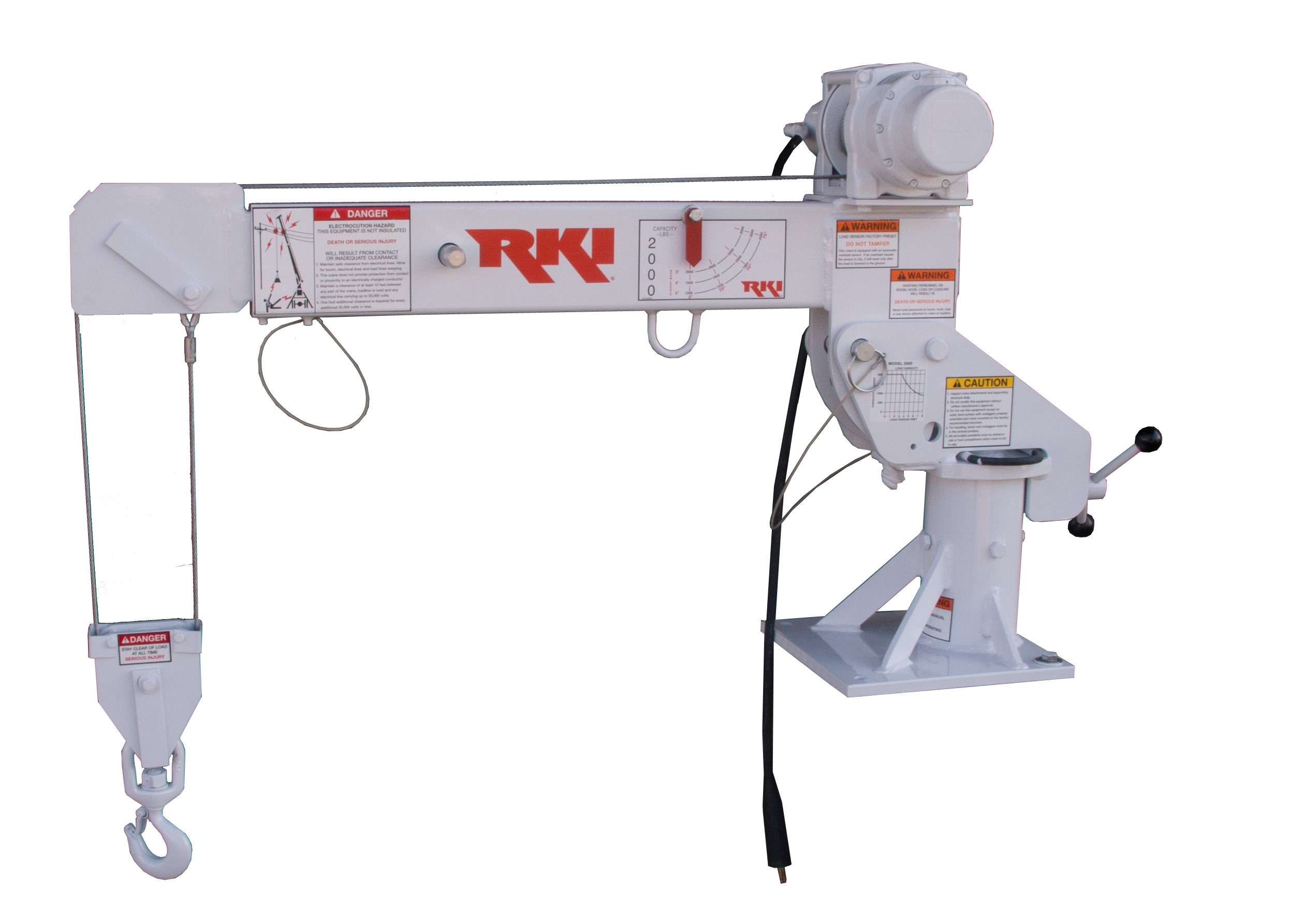

2000-3-5S
Product Images
Click for larger image
2000-3-5S Product Details
Anti two-blocking system
3' 5" to 5' 5" telescopic folding boom
2,000 lb. capacity at 3 ft. from centerline of rotation
6,000 ft. lb. maximum moment rating
Spring counter balanced boom for easy elevation adjustment
Boom elevation lifting positions - 0º, 25º, 50º, and 75º
Boom folds to vertical position for travel
Patented automatic load sensor for safety
Angle indicator with capacity in pounds
12' hand held, detachable remote control
360º continuous rotation
Mechanical rotation brake
25' of 3/16" galvanized aircraft type cable
Traveling block with swivel hook and safety latch
12 volt DC type planetary winch
1.5 H.P. DC reversible motor
25' of battery power cable with quick disconnect at crane
3' of battery ground cable
10" square bolt pattern on 12" x 12" baseplate
Grade 8 mounting bolts
Crane meets or exceeds OSHA 1910.180 requirements.
Short pedestal not included. Sold separately.
