Product Details
Commercial Grade Truck Equipment
Products Start
>
Crane
>
3200 Series
3200-3ERX15 Product Specs
Length:
0 "
Overall Length:
0 "
Height:
0 "
Overall Height:
34 "
Mount Height:
0 "
Overall Height Folded:
0 "
Depth:
0 "
Overall Depth:
0 "
Weight:
0 lbs.
Width:
0 "
Overall Width:
15 "
Number of Doors:
0
Top Tray Height:
0 "
Standard Tray:
0
Application:
0
Wheels:
Hoist:
Power
Rotation:
Power
Rotation Break:
0
Boom Elevation:
Power
Boom Exention:
Power
Retracted Length:
97 "
Extended Length:
145 "
Load Radius:
0
Lift Capacity:
0
Elevation Travel:
-5 thru 75 degrees
Material:
Not Specified
Number of Lids:
0
A:
0 "
B:
0 "
C:
0 "
D:
0 "
E:
0 "
F:
0 "
G:
0 "
H:
0 "
I:
0 "
Approximate Weight:
698 lbs.
Aproximate Shipping Weight:
848 lbs.
Ratio:
0
Gear Cut:
0
Drum:
0
Shaft:
0
Assembly:
0

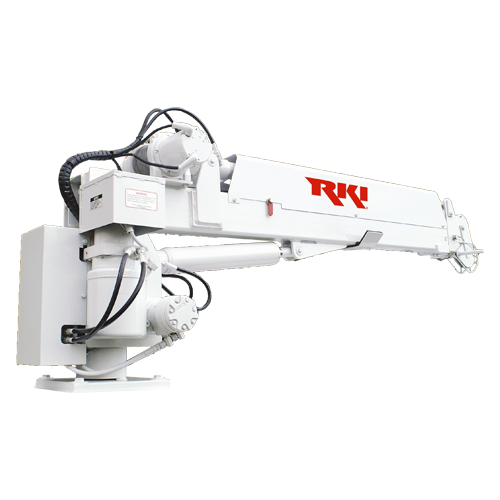

3200-3ERX15
Product Images
Click for larger image
3200-3ERX15 Product Details
Anti two-blocking system
Manual boom extension lengths 7', 9', 11', 13' and 15'
Power boom extension ranges 7' to 11', 9' to 13', 11' to 15'
3,200 lb. capacity at 3 ft. from centerline of rotation
10,000 ft. lb. maximum moment rating
Patented automatic load sensor for safety
Angle indicator with capacity in pounds
18' hand held, detachable remote control
Emergency stop button on remote control
360º continuous rotation
Dual tapered roller bearings for rotation
62' of 1/4" galvanized aircraft type cable
Traveling block with swivel hook and safety latch
In line oil filter (10 micron) on tank return line
12 volt DC type planetary winch
1.8 H.P. 12 volt heavy duty permanent magnet reversible motor
25' of battery power cable with quick disconnect at crane
Master disconnect switch with bracket for remote storage
3' of battery ground cable
10" square bolt pattern on 12" x 12" baseplate
Grade 8 mounting bolts
Crane meets or exceeds OSHA 1910.180 requirements and ANSI B30.5 safety standards
