Product Details

Commercial Grade Truck Equipment
Products Start > Crane > 4000 Series

4000-4ERX18 Product Specs

Length: 0 "
Overall Length: 0 "
Height: 0 "
Overall Height: 34 "
Mount Height: 0 "
Overall Height Folded: 0 "
Depth: 0 "
Overall Depth: 0 "
Weight: 0 lbs.
Width: 0 "
Overall Width: 20 "
Number of Doors: 0
Top Tray Height: 0 "
Standard Tray: 0
Application: 0
Wheels:
Hoist: Power
Rotation: Power
Rotation Break: 0
Boom Elevation: Power
Boom Exention: Power
Retracted Length: 122 "
Extended Length: 242 "
Load Radius: 0
Lift Capacity: 0
Elevation Travel: -5 thru 75 degrees
Material: Not Specified
Number of Lids: 0
A: 0 "
B: 0 "
C: 0 "
D: 0 "
E: 0 "
F: 0 "
G: 0 "
H: 0 "
I: 0 "
Approximate Weight: 915 lbs.
Aproximate Shipping Weight: 1090 lbs.
Ratio: 0
Gear Cut: 0
Drum: 0
Shaft: 0
Assembly: 0

4000-4ERX18 Product Images

Click for larger image

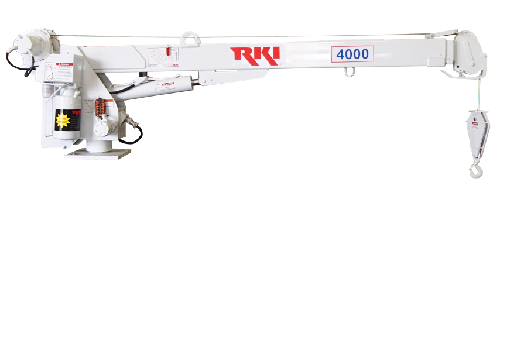

4000-4ERX18

4000-4ERX18 Product Details

  • Power boom extension ranges 8’ to 18’
  • 4,000 lb. capacity at 4 ft. from centerline of pivot
  • 16,000 ft. lb. maximum moment rating
  •  Patented automatic load sensor for safety
  • Anti two-blocking system
  • Angle indicator with capacity in pounds
  • 21’ tethered remote control
  • Emergency stop button on remote control
  • 360º continuous power rotation
  • 80’ of 1/4” galvanized aircraft type cable
  • Traveling block with quick conversion from single line to double line cable routing
  • Easy release hook stow for one person crews
  • 12 volt DC planetary winch
  • Self contained hydraulic system, including oil filter and easy fill and drain reservoir
  • 25’ of battery power cable with quick disconnect at crane and master cutoff switch
  • 3’ of battery ground cable
  • 12” square bolt pattern on 14” x 14” baseplate
  • Grade 8 mounting bolts
  • Crane meets or exceeds OSHA 1910.180 requirements and ANSI B30.5 safety standards

OPTIONS:

  • Wireless Remote Control
  • 4000 lb. manual outriggers
  • Pre-lasered mounting holes for service bodies






Lifetime Warranty
